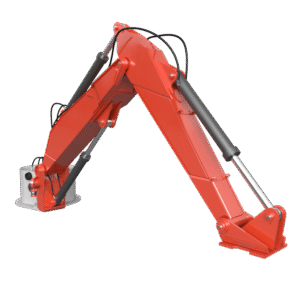

S630
The S Series Booms are similiar to the M Series Booms but are designed for even heavier applications like underground grizzlies.
| Weight, kg | 4400 |
| Maximum reach, m | 8.6 |
| Nominal horizontal reach (H), m | 6.5 |
| Nominal vertical reach (V), m | 5.8 |
| Swing, ° | 170 |
| Base dimensions, m | 1.51 |
| Recommended hammer types | 1533, 2155 |
| Recommended power packs | HA30, HA37 |
