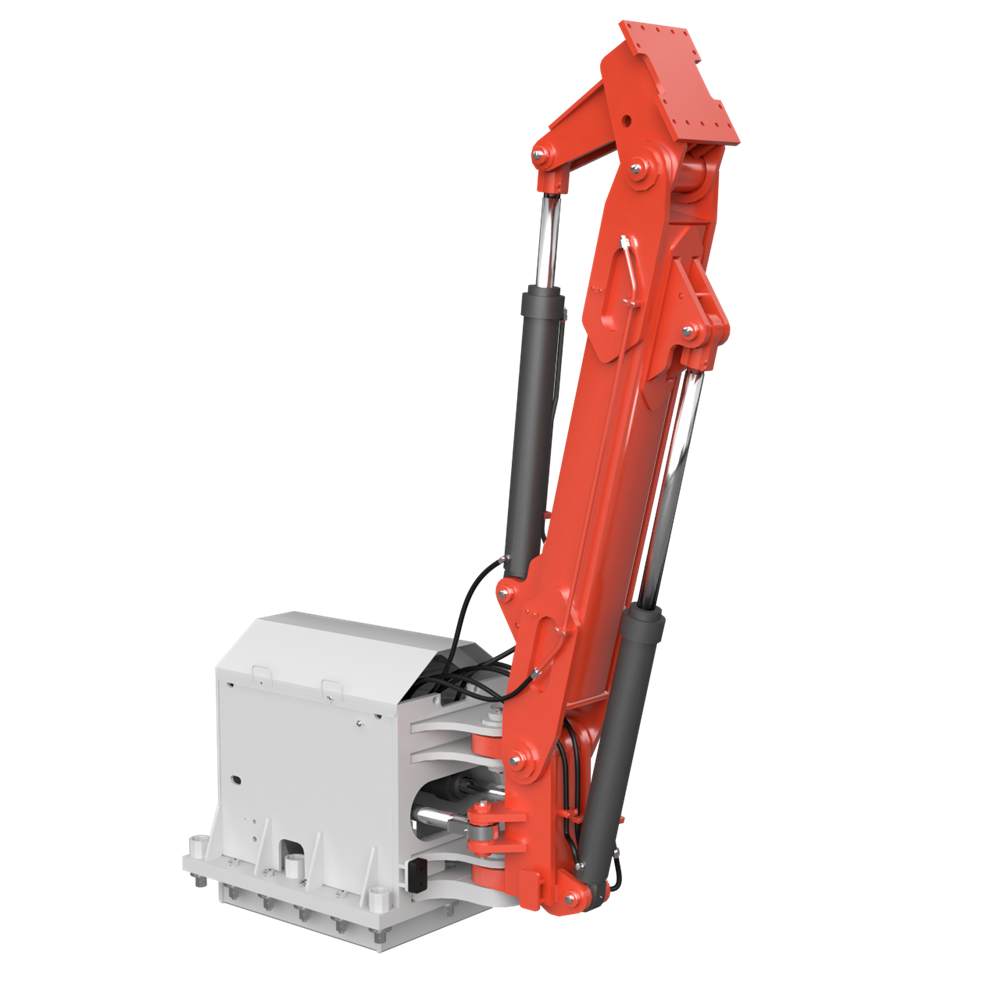

XM-series is specially designed for mining markets. Proven design combined to over dimensioning makes this a convenient and safe choice. XMbooms also feature a multi-fit pedestal, that makes replacing existing, worn-out boom systems more convenient. In addition the number of different parts is cut to minimum by e.g. fitting same cylinders for all boom functions.

Weight, kg 8545
Maximum reach, m 8.0
Nominal horizontal reach (H), m 5.5
Nominal vertical reach (V), m 5.1
Swing, ° 170
Base dimensions, m 1.52 x 1.22
Recommended hammer types 2155 - 3288
Recommended power packs HU 37 - HU 55
