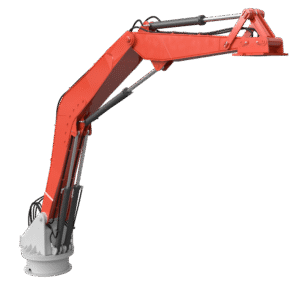

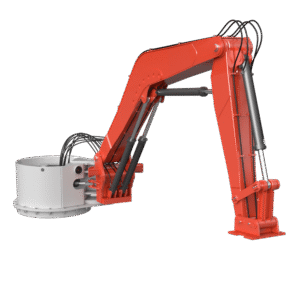

Applications demanding long reach and high breaking power require an XL series boom.
Applications include gyratory crushers in mines and quarries and grizzlies in mines. These series, like S- and M-series, feature a triangular design.
The boom pedestal is designed round for even stress distribution into the foundation.

Weight, kg 17500
Maximum reach, m 17.0
Nominal horizontal reach (H), m 14.1
Nominal vertical reach (V), m 13.0
Swing, ° 170
Base dimensions, m 2.29
Recommended hammer types 2577 - 4099
Recommended power packs HU 45 - HU 55
