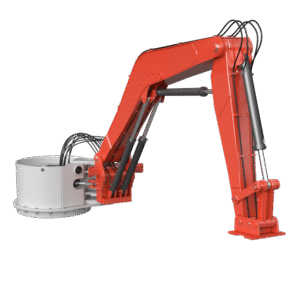

Applications demanding long reach and high breaking power require an XL series boom.
Applications include gyratory crushers in mines and quarries and grizzlies in mines. These series, like S- and M-series, feature a triangular design.
The boom pedestal is designed round for even stress distribution into the foundation.
|Maximum reach, m||12.7|
|Nominal horizontal reach (H), m||9.8|
|Nominal vertical reach (V), m||9.2|
|Base dimensions, m||2.29|
|Recommended hammer types||2577 - 4099|
|Recommended power packs||HU 45 - HU 55|
